Generate PlantUML

1. Generate PlantUML ERD content

dbterd run -t plantuml -ad "samples/dbtresto" -s schema:dbt.mart 2023-05-06 08:17:54,413 - dbterd - INFO - Run with dbterd==?.?.? (main.py:54) 2023-05-06 08:17:54,715 - dbterd - INFO - target/output.plantuml (base.py:75)

2. Wrapping UML up to the web server

  • Go to PlantUML Web Server
  • Paste the PlantUML content generated as above
  • Wait for a second and get the URL

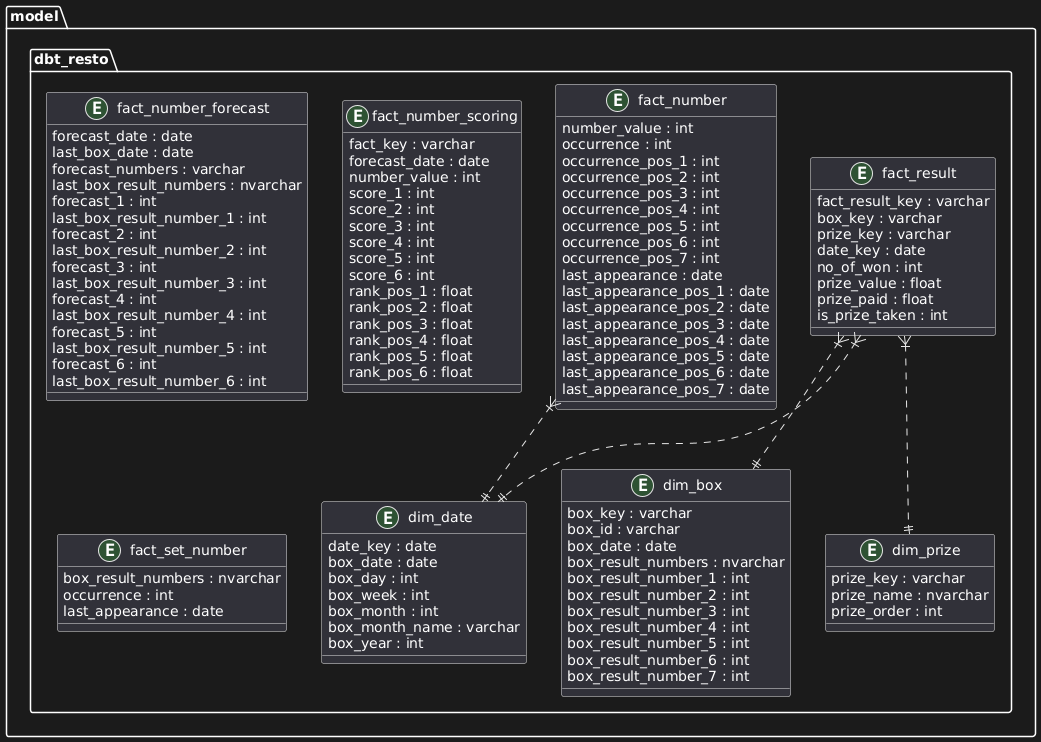

3. Embedded the PlantUML URL into Markdown

![](https://www.plantuml.com/plantuml/dpng/{your-hash})

erd

Known Limitationđź’ˇ

  • Plant UML connectors seem not to support to indicate the columns which are related to the Relationship
  • Left the question "How to automate the markdown image URL generated?" opened
